Ruthmann TBR 250
- Working height 24.5 m
- Max. outreach 16.5 m
- Transport height 3.2 m
- Transport length 6.92 m
- Transport width 2.25 m
- Weight 3500 kg
- Loading capacity *230 kg
- Platform dimensions 0.70 x 1.40 m
All prices are excl VAT
Product description

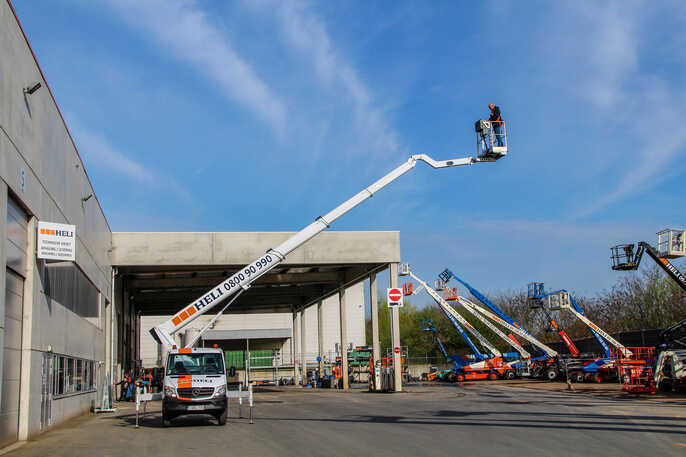

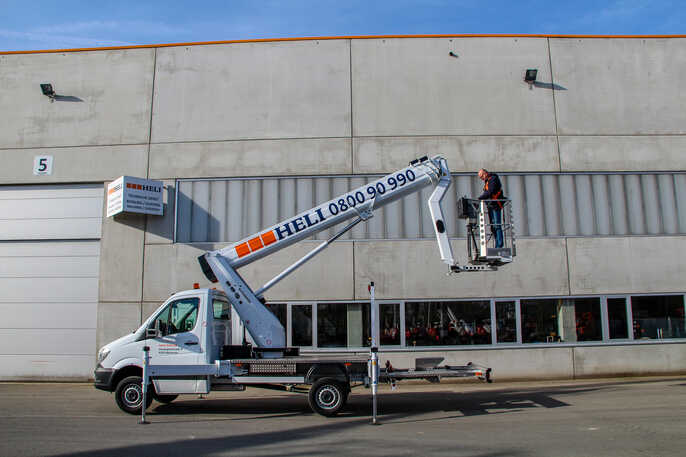

Rental truck: Ruthmann 24.5 m telescopic boom lift with jib, mounted on a Mercedes Sprinter
Our machine is equipped with the following:
- Hydraulic jib
- Cage rotation
- Automatic stabilization (and retracting the stabilization)
- Multi-position stabilization jacks (e.g., maximum support on the left of the machine and minimum on the right, and then the platform adjusts the reach automatically)
- 'Go home' function – the unit returns to transport position in reverse order from setting out the jacks
- 230 V in the cage
Key features:
- Working height: 24.5 m
- Maximum cage capacity: 230 kg
- Maximum lateral reach:
- 10.80 m with 230 kg
- 11.20 m with 200 kg
- 16.50 m with 100 kg - Maximum jack width:
- Front: 3.66 m
- Rear: 3.50 m
- Distance between front and rear jacks: 4.15 m - The machine's weight: 3,500 kg
Is training for the Ruthmann TBR 250 required? Yes, tailored to your experience
Training is essential for working safely with an aerial work platform such as the Ruthmann TBR 250. Not only to operate the machine correctly, but above all to properly assess risks and work safely at heights.
Through Heli Safety Academy, we offer training courses tailored to your experience and needs.
Are you working with an aerial work platform for the first time, or do you have limited experience? Then you’ll take a 2-day course. Are you already familiar with operating aerial work platforms? Then you can opt for a 1-day refresher course.
The training courses are available in Dutch, French, and English, so that every user is trained in their own language and prepared for real-world situations.
This ensures that you not only comply with regulations but, above all, can be confident in safe and efficient operation on the job site.
