Spider cranes

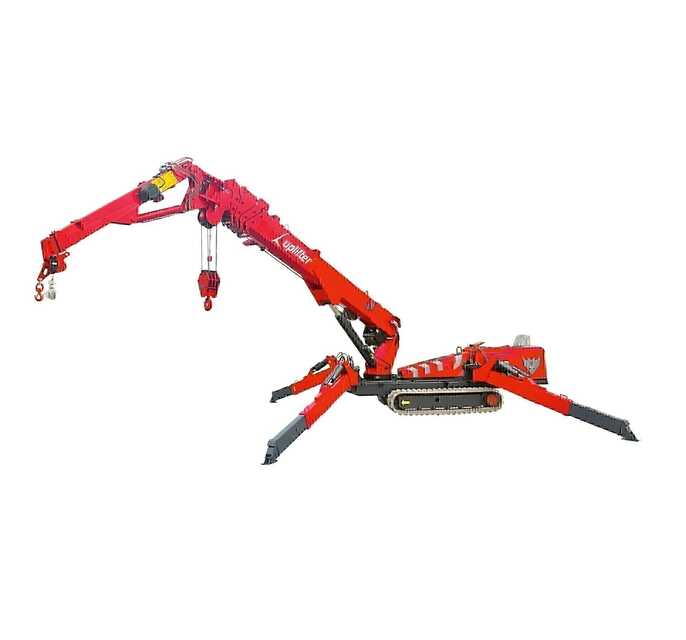

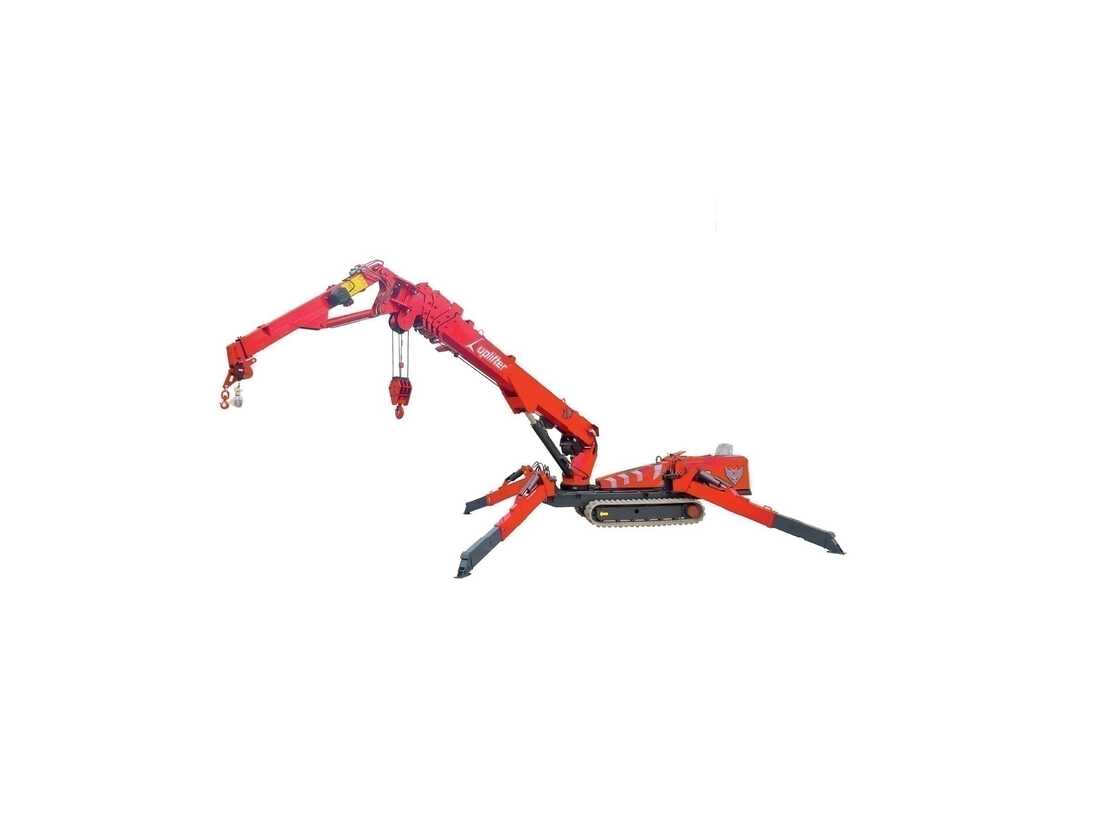

SPT 499
- Lifting height 22 m
- Max. lifting capacity 5000 kg
- Weight 6200 kg
- Max. working radius 16.5 (21.5*) m
- Transport height 2 m
- Transport width 1.4 m
- Transport length 5.48 m
- Max. outrigger footpr. 4 m
Product description
Standard equipment
Mounting point, load hook, engine heating, hybrid drive, radio remote control with integrated digital load display, operating hour meter,,1/2/4-hook cylinder, black rubber tracks, 360° slewing range, overspeed protection, hydraulic safety valves, levelling indicator, tilt alarm, emergency stop switch, load moment limiter, operating warning light, locking of support legs
- Manufacturer: SPT
- Lifting capacity max. 5.000 kg
- Working radius 16.5 m
- Hook height max. 17.5 m (22.0 m incl. jib)
- Gradeability: max. 20° or 36
- Crane below ground: 17.5 m/4-fold, 35.0 m/2-fold, 70.0 m/1-fold shear
- L/W/H 5,480 mm x 1,400 mm x 2,000 mm
- Combination drive diesel/electric 380 V
- Diesel engine 3TNV80F(YANMAR) 14.6 kW 2,400 rpm
- Own weight approx. 6,200 kg
